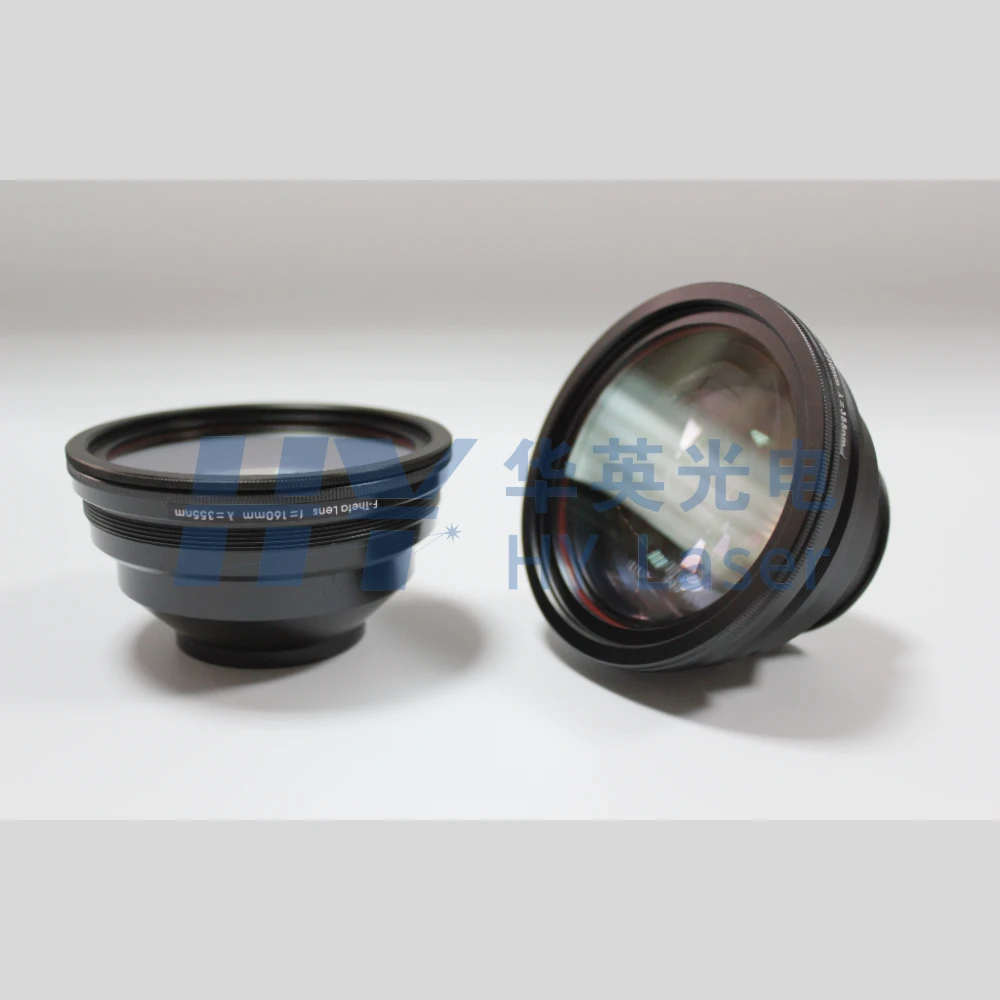

3D Printing High Power F-theta Lenses

Advantage Highlight:

  •  Imported quartz: supports water-cooling and non-water-cooling, good sealing performance, low temperature drift.
  • Wide band coating: compatible with various brands of laser instruments, small curvature, good focal plane uniformity.
  • Imported coating machine: high LIDT, total transmission is >98.5%, good long-term stability.
  • Complete range of product types: Available from F160-F1900, covering the range of 110 mm – 1000 mm to meet various metal 3D printing needs.

Product details:

See below for the product advantages and a range of customisable variables:

Advantage Highlight:

  •  Imported quartz: supports water-cooling and non-water-cooling, good sealing performance, low temperature drift.
  • Wide band coating: compatible with various brands of laser instruments, small curvature, good focal plane uniformity.
  • Imported coating machine: high LIDT, total transmission is >98.5%, good long-term stability.
  • Complete range of product types: Available from F160-F1900, covering the range of 110 mm - 1000 mm to meet various metal 3D printing needs.
Serial Number Design Wavelength (nm) Focal Length (mm) Working Distance (mm) Scan Field (mm) Entrance Beam Diameter (mm) Thread Water cooling or not
HY-SL-1064-110-170-FSA（20CA） 1064 170 224 110*110 20 M85*1/79*1 Y/N
HY-SL-1064-140-210-FSA（20CA） 1064 210 271 140*140 20 M85*1/79*1 Y/N
HY-SL-1064-175-254-FSA（20CA） 1064 254 324 175*175 20 M85*1/79*1 Y/N
HY-SL-1064-170-295-FSA（20CA） 1064 295 364 170*170 20 M85*1/79*1 Y/N
HY-SL-1064-220-330-FSA（20CA） 1064 330 397 220*220 20 M85*1/79*1 Y/N
HY-SL-1064-230-350-FSA（20CA） 1064 350 420 230*230 20 M85*1/79*1 Y/N
HY-SL-1064-300-420-FSA（20CA） 1064 420 499 300*300 20 M85*1/79*1 Y/N
HY-SL-1064-320-480-FSA（20CA） 1064 480 592 350*350 20 M85*1/79*1 Y/N
HY-SL-1064-360-500-FSA（20CA） 1064 500 560 360*360 20 M85*1/79*1 Y/N
HY-SL-1064-360-525-FSA（20CA） 1064 525 624 360*360 20 M85*1/79*1 Y/N
HY-SL-1064-410-580-FSA（20CA） 1064 580 648 400*400 20 M85*1/79*1 Y/N
HY-SL-1064-450-650-FSA（20CA） 1064 650 732 410*410 20 M85*1/79*1 Y/N
HY-SL-1064-450-670-FSA（20CA） 1064 670 732 410*410 30 M85*1/79*1 Y/N
HY-SL-1064-500-800-FSA（20CA） 1064 800 735 500*500 20 M85*1/79*1 Y/N
HY-SL-1064-600-900-FSA（20CA） 1064 900 988 600*600 20 M85*1/79*1 Y/N
HY-SL-1064-1000-1420-FSA（20CA） 1064 1420 1534 1000*1000 20 M85*1/79*1 Y/N
HY-SL-1064-1350-1900-FSA（20CA） 1064 1900 2021 1350*1350 20 M85*1/79*1 Y/N

Spacer

In addition to our current portfolio and custom optical solutions, we also offer a selection of high-performance lenses from our previous product range, available upon request. This includes lenses designed for various markets, applications, and technical specifications.
MORE wavelength options.
MORE depth of focus options.
MORE depth of working distance options.
