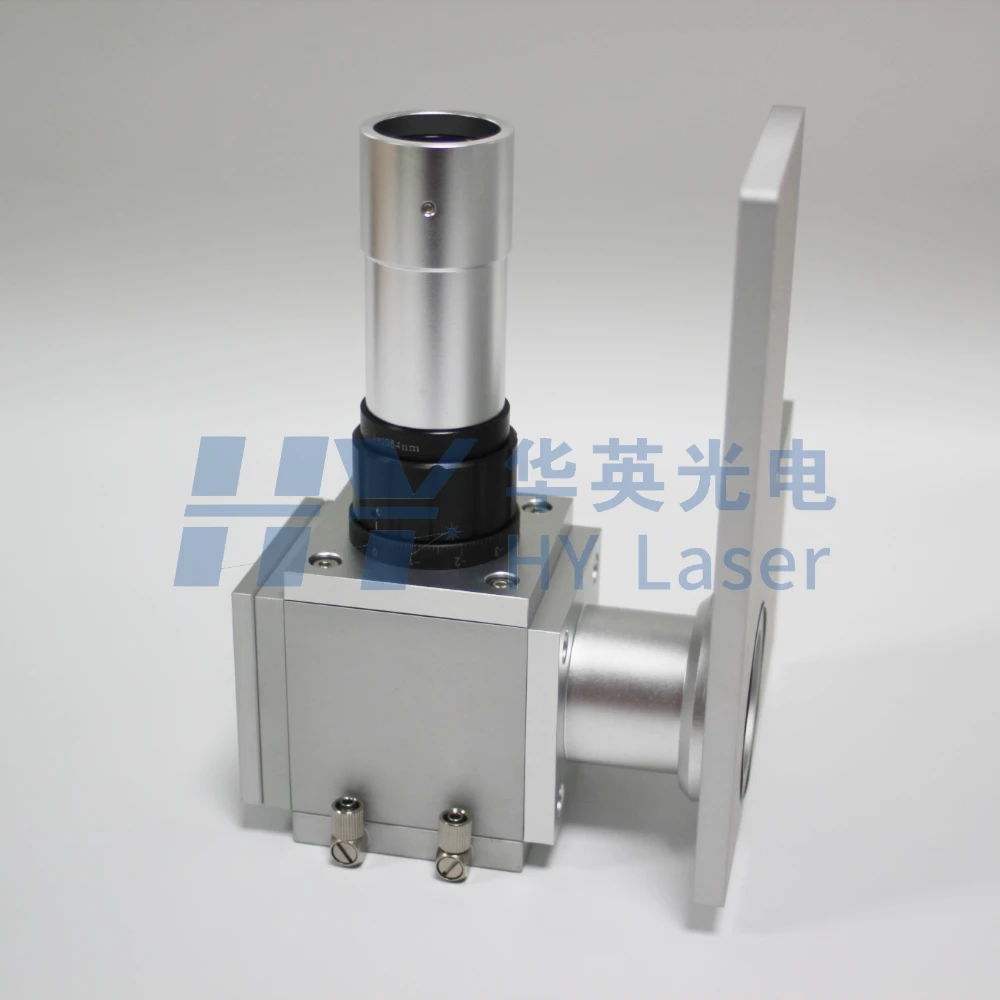

3D Printing QBH Module

Advantage Highlights:

  • Stable structure, good sealing performance, low temperature drift
  • Composite collimation design, drawer type protective lenses, adjustable divergence angle design

Product details:

See below for the product advantages and a range of customisable variables:

Advantage Highlights:

  • Stable structure, good sealing performance, low temperature drift
  • Composite collimation design, drawer type protective lenses, adjustable divergence angle design
Serial Number Focal Length
 (mm)		 Entrance Beam Diameter
(mm)		 Power
(W)		 Thread Water-cooling or Not
HY-QBH-20-F35-W/WJ 35 20 4000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-20-F50-W/WJ 50 20 4000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-20-F60-W/WJ 60 20 4000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-20-F70-W/WJ 70 20 4000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-20-F75-W/WJ 75 20 4000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-20-F100-W/WJ 100 20 4000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-20-F125-W/WJ 125 20 4000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-20-F150-W/WJ 150 20 4000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-30-F75-W/WJ 75 30 6000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-30-F100-W/WJ 100 30 6000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-30-F115-W/WJ 115 30 6000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-30-F125-W/WJ 125 30 6000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-30-F150-W/WJ 150 30 6000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-30-F200-W/WJ 200 30 6000 M36*0.75/M40*0.75/four-hole flange Y/N
HY-QBH-30-F250-W/WJ 250 30 6000 M36*0.75/M40*0.75/four-hole flange Y/N

*Note:

  • In the serial number, W stands for water-cooling, and J stands for adjustable divergence angle design.
  • Connection method support flange or screw.
