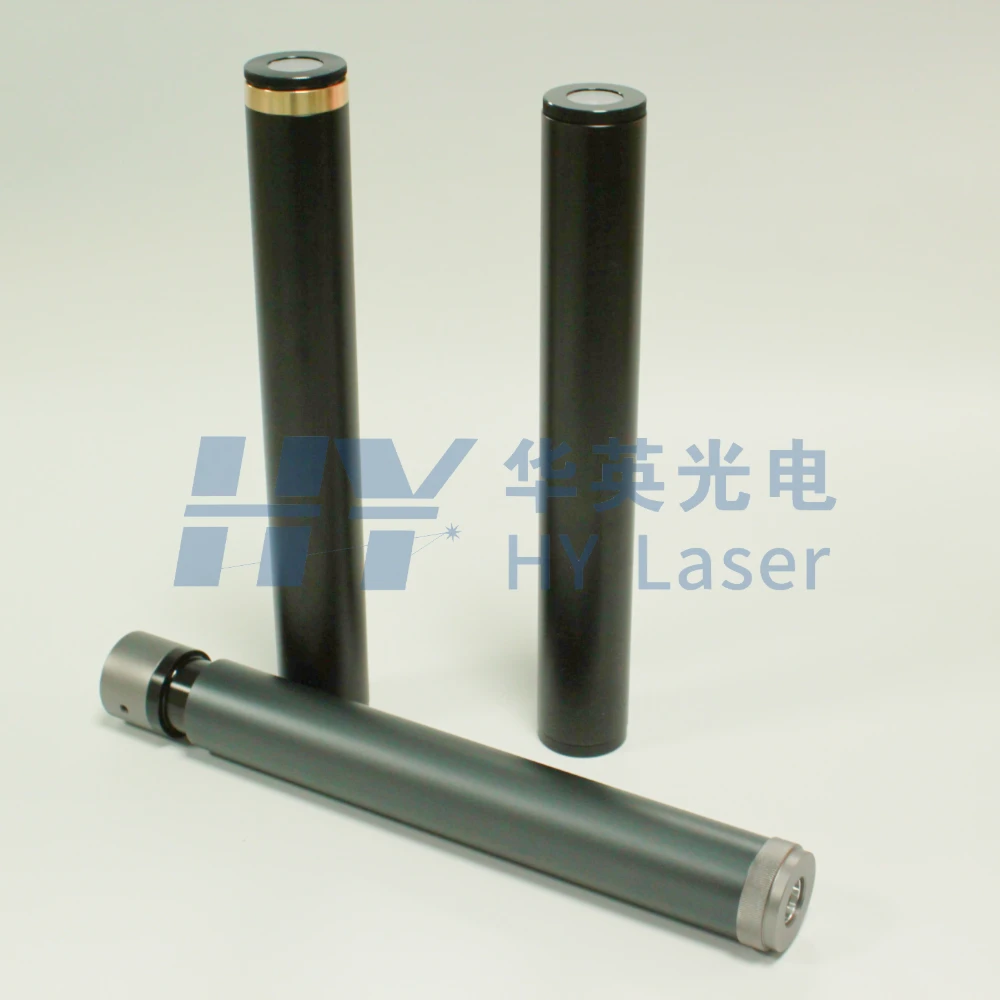

Bessel Ultra-fast Cutting Head Series

Commonly used in OLED panel cutting, full-screen mobile phone cover glass cutting, precision processing of intelligent wearable device protective glass, sapphire tapper-free cutting, wafer cutting, LCD panel cutting, and other fields.

Product details:

See below for the product advantages and a range of customisable variables:

Advantage Highlight:

  • Imported quartz microscope.
  • The focusing spot is finer and more uniform
  • The chipping edge < 5um under 1000X

Different materials can be chosen, total transmission is >99.8%, and support 200W-50000W working environment.

Serial Number Design Wavelegth (nm) Depth of Focus (mm) Working Distance
(mm)
Entrance Beam Diameter
(μm)
HY-BSL-0.5-9-1064 1064 0.5 9 1.5
HY-BSL-1-9.5-1064 1064 1 9.5 2
HY-BSL-3-12-1064 1064 3 12 3.5
HY-BSL-6-17-1064 1064 6 17 4
HY-BSL-8-16-1064 1064 8 16 4
HY-BSL-8-16-1064 1064 8 16 4
HY-BSL-10-17-1064 1064 10 17 4
HY-BSL-0.5-9-532 532 0.5 9 0.7
HY-BSL-1-9-532 532 1 9 1
HY-BSL-3-9-532 532 3 9 1.7
HY-BSL-0.5-9-355 355 0.5 9 0.5
HY-BSL-1-9-355 355 1 9 0.7
HY-BSL-3-9-355 355 3 9 1.2

Spacer

In addition to our current portfolio and custom optical solutions, we offer a selection of high-performance lenses from our previous product range, available upon request. This includes lenses designed for various markets, applications, and technical specifications.
MORE wavelength options.
MORE depth of focus options.
MORE depth of working distance options.a
