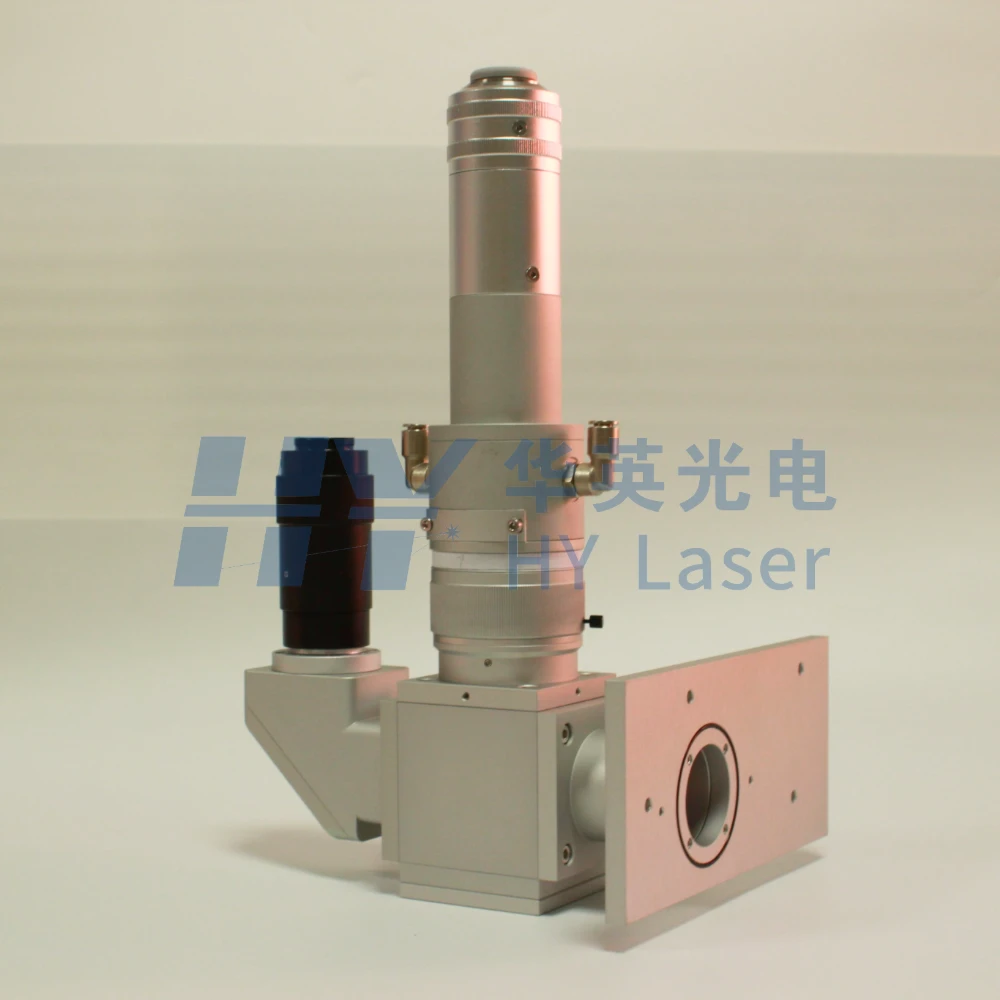

QBH for Welding System

Advantage Highlights:

  • Stable structure/ Good sealing performance/Low temperature drift
  • Composite collimation design, drawer type protective lenses, adjustable divergence angle design
  • Equipped with high-definition imaging CCD

Product details:

See below for the product advantages and a range of customisable variables:

Advantage Highlights:

  • Stable structure/ Good sealing performance/Low temperature drift
  • Composite collimation design, drawer type protective lenses, adjustable divergence angle design
  • Equipped with high-definition imaging CCD
Serial Number Focal Length
（mm）		 Spot Size
(mm)		 Power
（W)		 Thread Water Cooling or Not
HY-QBH-20-F35-W/WJ 35 20 4000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-20-F50-W/WJ 50 20 4000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-20-F60-W/WJ 60 20 4000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-20-F70-W/WJ 70 20 4000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-20-F75-W/WJ 75 20 4000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-20-F100-W/WJ 100 20 4000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-20-F125-W/WJ 125 20 4000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-20-F150-W/WJ 150 20 4000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-30-F75-W/WJ 75 30 6000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-30-F100-W/WJ 100 30 6000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-30-F115-W/WJ 115 30 6000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-30-F125-W/WJ 125 30 6000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-30-F150-W/WJ 150 30 6000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-30-F200-W/WJ 200 30 6000 M36*0.75/M40*0.75/Four-hole flange Y/N
HY-QBH-30-F250-W/WJ 250 30 6000 M36*0.75/M40*0.75/Four-hole flange Y/N

*Note:

  • In the serial number, "W" stands for water cooling, "J" stands for adjustable divergence angle the connection method can be flanged or threaded.
  • Various non-standard focal lengths and connection methods can be customized.

Spacer

In addition to our current portfolio and custom optical solutions, we also offer a selection of high-performance lenses from our previous product range, available upon request. This includes lenses designed for various markets, applications, and technical specifications.
MORE wavelength options.
MORE depth of focus options.
MORE depth of working distance options.
