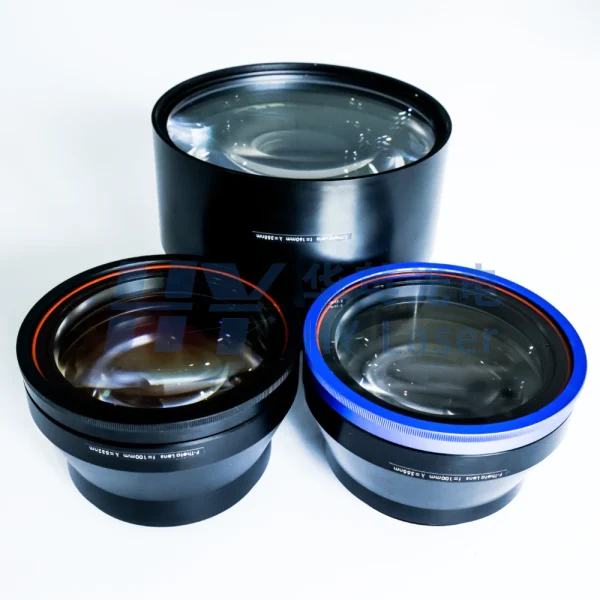

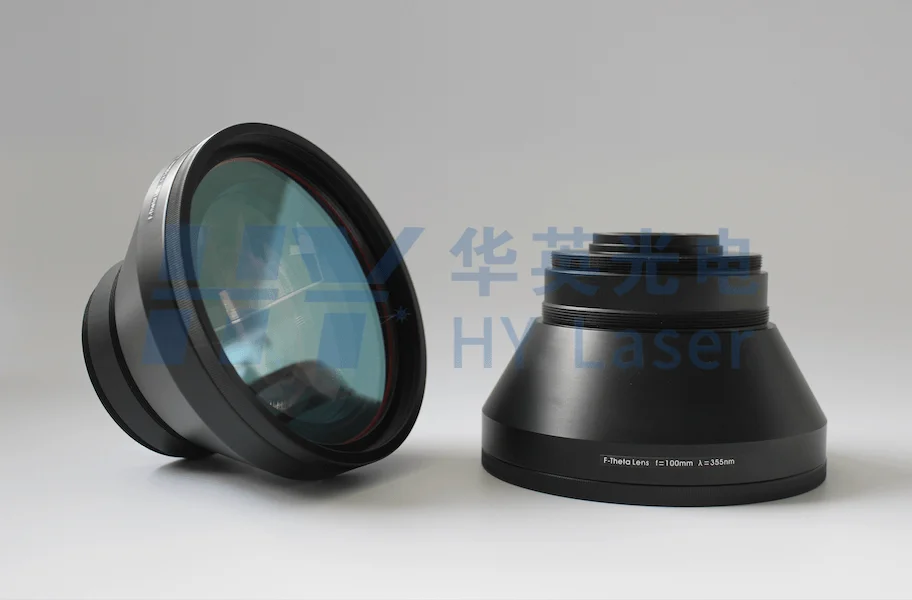

Telecentric F-theta Lenses

Advantage Highlights:

  • Telecentricity ＜ 1.5 °, and the center ＜ 0.5°
  • Imported quartz material, high damage threshold coating, total transmission > 98%

Product details:

See below for the product advantages and a range of customisable variables:

Advantage Highlights:

  • Telecentricity ＜ 1.5 °, and the center ＜ 0.5°
  • Imported quartz material, high damage threshold coating, total transmission > 98%
Serial Number Design Wavelength
（nm）		 Focal Length
（mm）		 Working Distance
（mm）		 Scan Field
（mm）		 Entrance Beam Diameter
(mm)		 Thread
HY-TSL-1064-17-63 1064 63 83 17*17 14 M85*1/79*1
HY-TSL-1064-40-80 1064 80 100 40*40 14 M85*1/79*1
HY-TSL-1064-50-100 1064 100 132 50*50 14 M85*1/79*1
HY-TSL-1064-70-120 1064 120 156.5 70*70 14 M85*1/79*1
HY-TSL-1064-75-125 1064 125 156 75*75 14 M85*1/79*1
HY-TSL-1064-80-160 1064 160 230 80*80 14 M85*1/79*1
HY-TSL-1064-100-160 1064 160 220 100*100 14 M85*1/79*1
HY-TSL-1064-120-210 1064 210 314 120*120 14 M85*1/79*1

Spacer

In addition to our current portfolio and custom optical solutions, we also offer a selection of high-performance lenses from our previous product range, available upon request. This includes lenses designed for various markets, applications, and technical specifications.
MORE wavelength options.
MORE depth of focus options.
MORE depth of working distance options.
